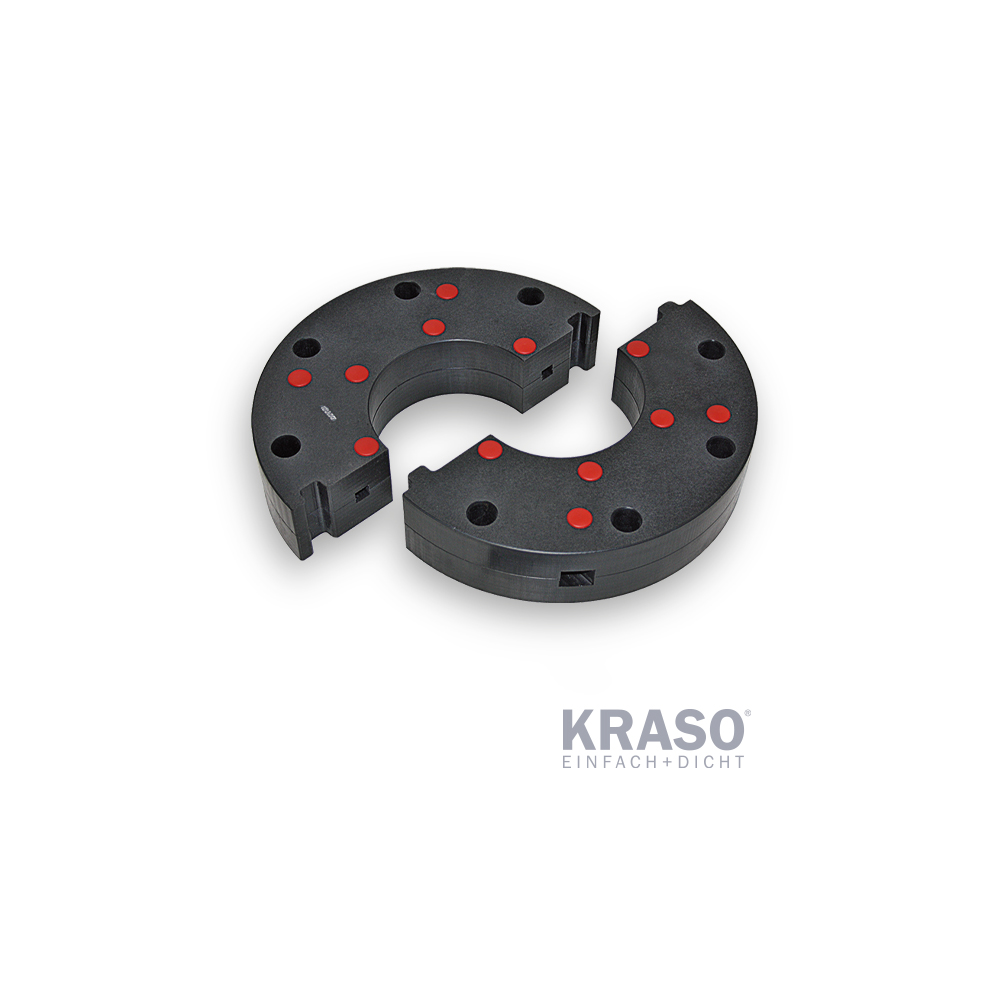

KRASO Plastic Flange Plate Type KFP - split - (piece)
For installation of pipes or cables using a sealing insert (not included in the scope of supply), ID = InternalDiameter | DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1 -E and W2.1 -E
A proven solution reinvented
+ Like a "split casing": the flange plate made of high-strength plastic can be installed retrospectively
+ No core drilling: no need for the separation of media lines for installation!
+ Installation in front of a wall made of waterproof concrete or as KRASO Type KFP with foil flange in front of a wall with sealing of larger areas
+ Easy installation by just one person thanks to the low weight!
+ Latest CNC production technology: absolute dimensional compliance - no tolerances like they are usual with solutions involving metal
+ Tongue and groove system: the two halves of the plastic flange plate pull together with 100% accurate fit automatically. Installation errors are thus avoided due to this innovation!
+ Subsequent sealing of the media line in the plastic flange plate using a sealing insert
+ DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1 -E and W2.1 -E
Спецификации
| Internal Diameter ID | 80, 250, 100, 125, 150, 200, 300 |
| Foil flange | without foil flange, with foil flange |
