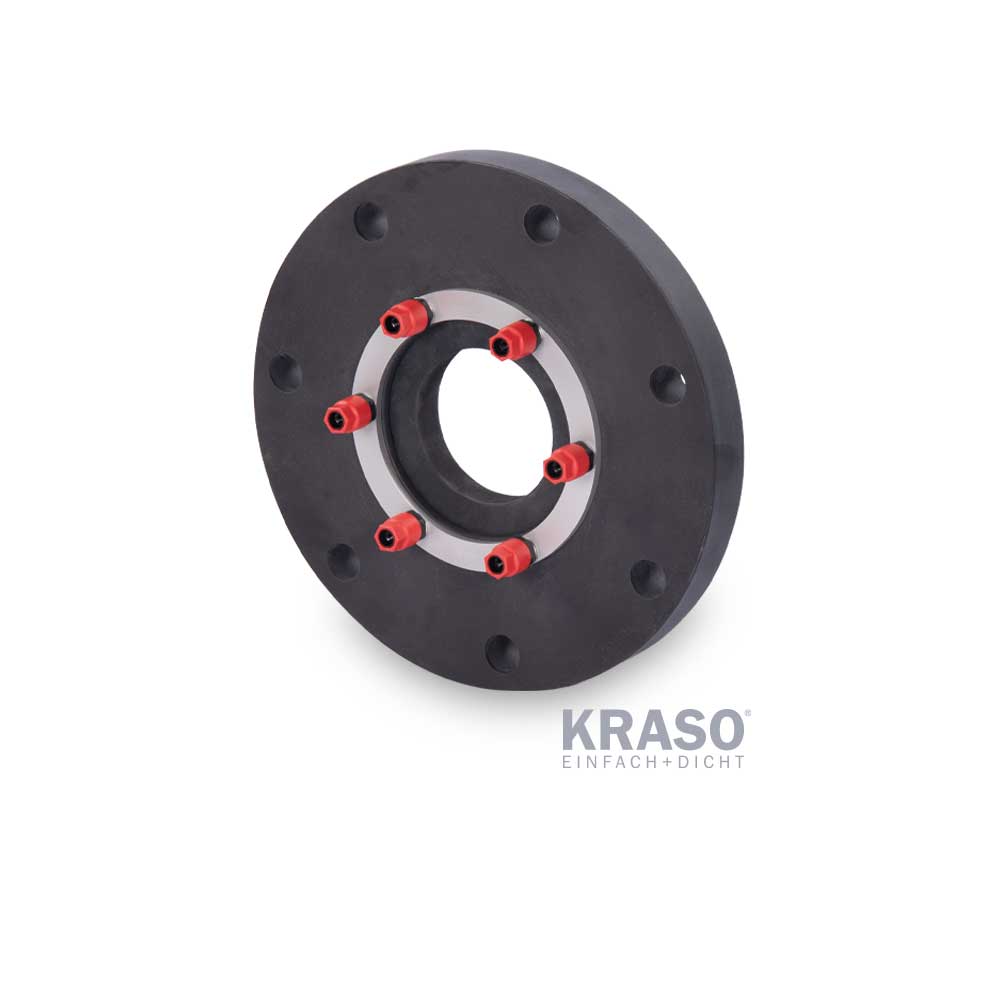

KRASO Multi-Flange Plate Type MFP (piece)
For installation of pipes, sealing width to the media pipe or cable 20 mm | DafStB waterproof concrete guideline: stress class 1 + 2
Smart combination - innovative solution
+ Combination of high-quality KRASO Sealing Insert and flange plate made of high-strength special plastic!
+ Fast and easy installation thanks to the low weight - even by just one person!
+ Installation in front of the waterproof concrete wall. EPDM flat seal, fixing material and adhesive and sealant KRASO PU 50 are included in the scope of supply.
+ For new buildings and rehabilitation! Easy and fast installation and sealing of all kinds of media lines, also retrospectively. Special designs can usually be produced and dispatched within 24 hours.
+ MPA-tested: water pressure tight up to 1 bar!
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ DafStB waterproof concrete guideline: stress class 1 + 2
Спецификации
| Diameter pipe or cable in mm | 22 - 35, 32 - 35, 40 - 43, 48 - 50, 60 - 63, 75 - 77, 78 - 80, 88 - 90, 108 - 110, 114 - 118, 123 - 125, 133 - 135, 139 - 140, 158 - 160, 168 - 170, 177 - 180, 200, 210, 219, 225, 250 |
| Diameter integrated KRASO Sealing Insert | 80, 100, 125, 150, 200, 250, 300 |
