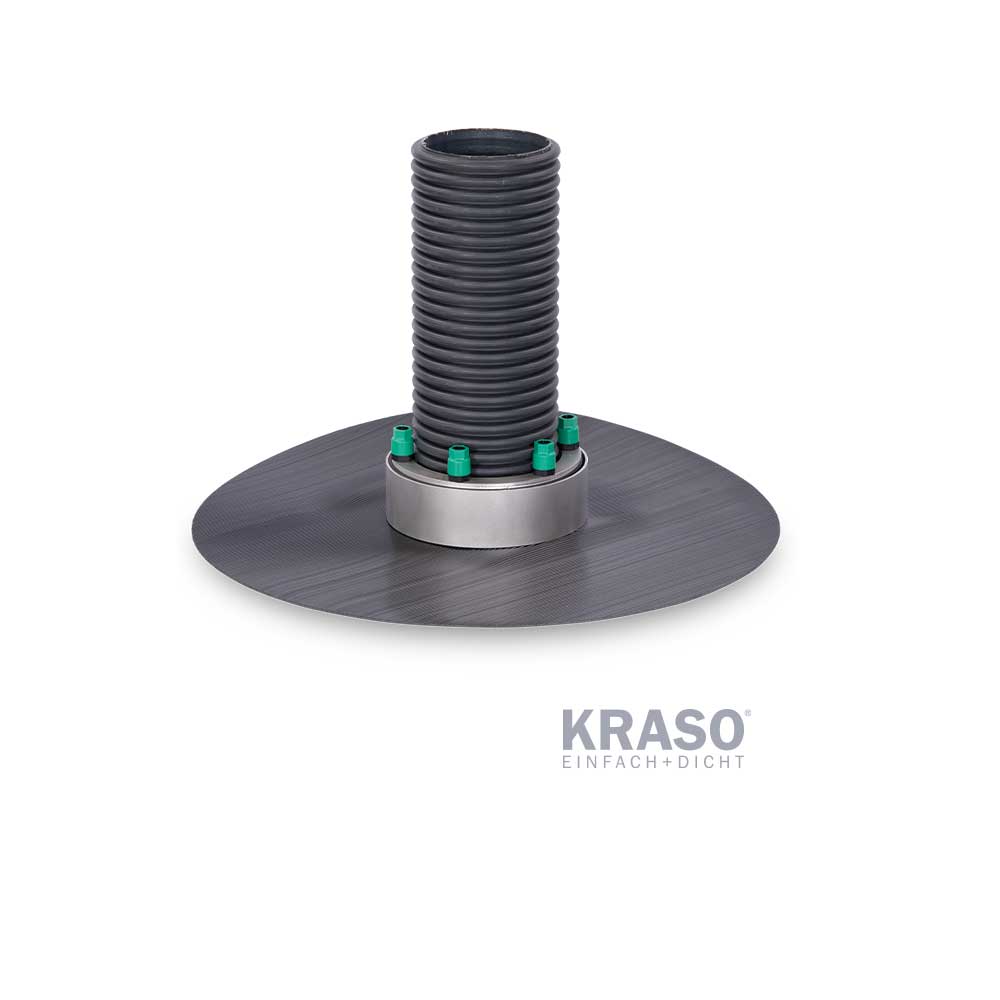

KRASO Foil Clamping Flange Type FKF DD/GR (piece)
for the sealing of media of all kinds of materials in front of a wall or in the core drilling, with foil flange 1,2 mm, according to DIN 16937, oil- and bitumen resistant, surrounding approx. 15 cm, 40 mm specially soft seal, central pressure distribution plate for even pressure distribution with corrugated media pipes, against pressing water up to 1 bar, Torque Control Nut KRASO DKM, non-corrosive stainless steel V2A | DIN 18533 W1 -E and W2.1 -E
The revolution in terms of the integration of media lines into the sealing of larger areas
+ Innovative: water pressure tight sealing of any even and stable cable with our KRASO Foil Clamping Flange Type FKF foil flange!
+ Suitable for all external diameters of media lines and for all materials!
+ We can individually customise the type of sealing sheets or foils: e.g. PVC, EPDM, FPO, RESITRIX®, PP, PE, KRASO-Fol, PYE-PV 200 S5 etc.
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ Metal components made of non-corrosive stainless steel V2A
+ For new buildings and rehabilitation! Various designs for almost every situation!
+ Simple and fast mounting!
+ MPA-tested: water pressure tight up to 2,5 bar!
+ Certified with the quality seal of the FHRK e. V.
+ DIN 18533 W1 -E and W2.1 -E
Спецификации
| Type FKF | - in front of the wall -, - in front of the wall - split -, in the core drilling -, - in the core drilling - split - |
| External diameter or core hole in mm | 100, 125, 150, 200, 250, 300 |
| max.d | 0-63, 0-80, 0-110, 0-160, 0-200, 0-250 |
