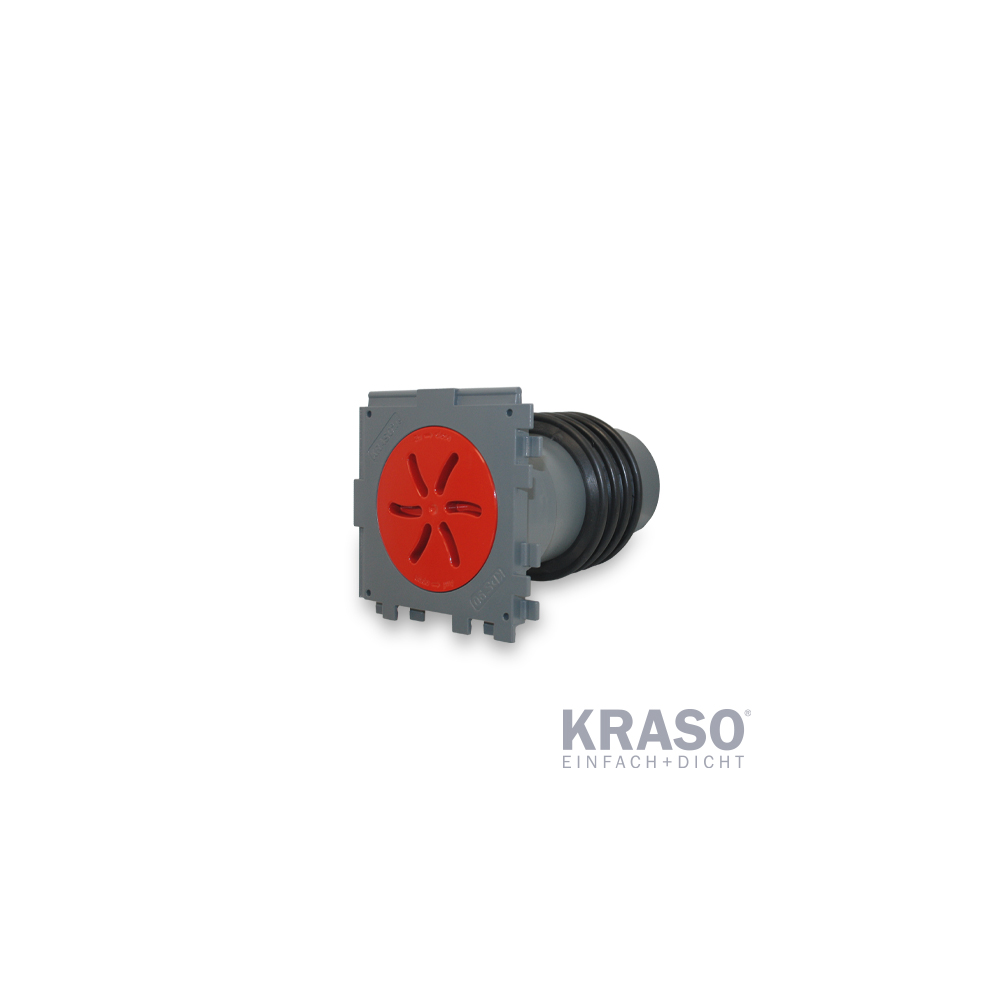

KRASO Cable Penetration KDS as single wall penetration (piece)
Cable penetration system for concreting, with gas- and water pressure tight surrounding KRASO 4 Seal and KDS closure covers, with plug-in system on one side for forming packages, for later installation of media lines using a KRASO System Sealing Insert (not included in the scope of supply) or for connecting empty pipe hoses using KRASO System Cover (not included in the scope of supply).
Optionally available: KRASO Spacer 40 mm for KDS 150 single wall penetration for the enlargement of the centre distance from 210 mm to 250 mm | DafStB waterproof concrete guideline: stress class 1 + 2
Compatible, tight, secure - the single wall penetration system
+ Compatible with all other current systems! Tight due to our water pressure tight KRASO 4 Seal! Secure due to break-resistant solid wall material!
+ The intelligent, all-purpose and flexible cable penetration system for complex new buildings: public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector
+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas
+ The matching accessories for every purpose!
+ DafStB waterproof concrete guideline: stress class 1 + 2
Спецификации
| Wall thickness | 7.87 in / 20 cm, 11.8 in / 30 cm, 15.7 in / 40 cm, 19.7 in / 50 cm, 9.45 in / 24 cm, 9.84 in / 25 cm, 13.8 in / 35 cm, 14.4 in / 36,5 cm, 17.7 in / 45 cm, 5.91 in / 15 cm, 6.89 in / 17,5 cm |
| Diameter KDS | KDS 150, KDS 90 |
