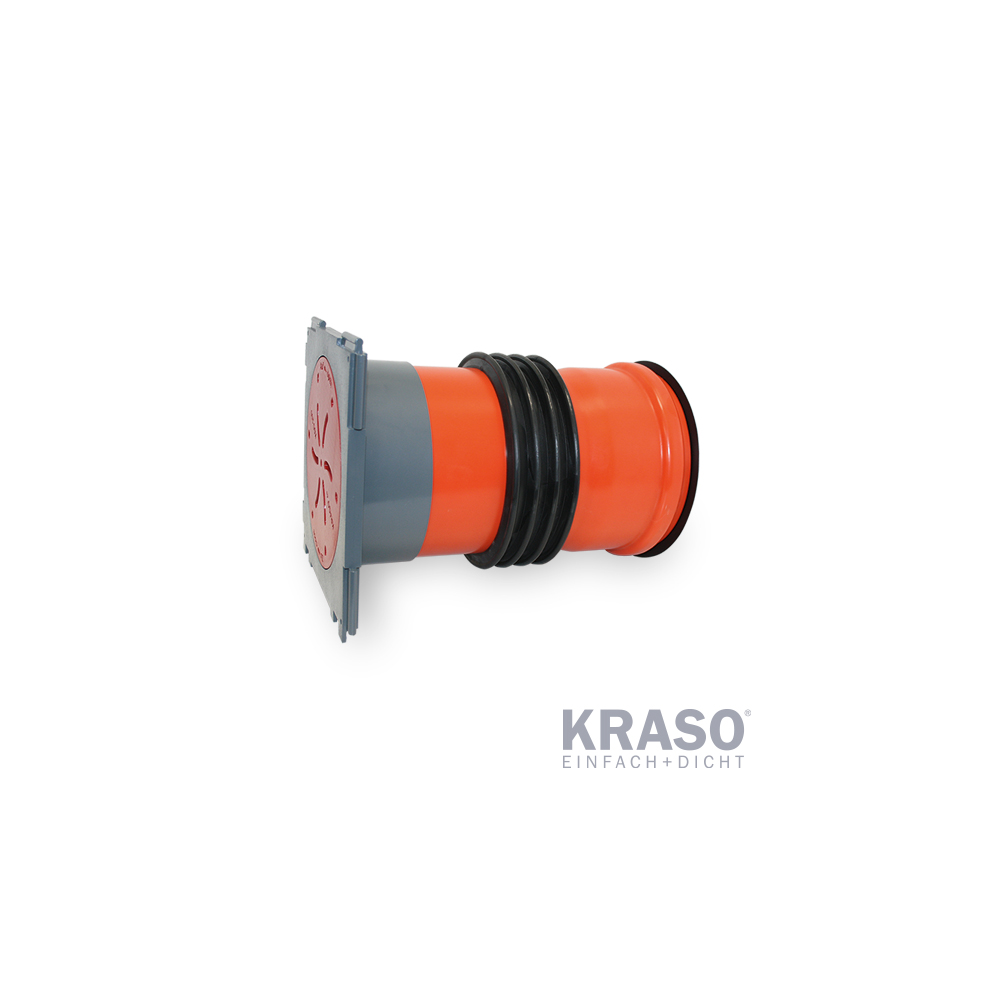

KRASO Cable Penetration KDS 150 as single wall penetration with plug-in sleeve (piece)
For later installation of pipes or cables using KRASO System Sealing Insert KDS 150 (not included in the scope of supply) or KRASO System Cover KDS 150 (not included in the scope of supply), with water pressure tight surrounding KRASO 4 Seal, with plug-in system on one side for forming packages, one side with plug-in sleeve including connection for KG, HT or KG 2000 pipes DN 160 | DafStB waterproof concrete guideline: stress class 1 + 2
Compatible, tight, secure - the single wall penetration system
+ Compatible with all other current systems! Tight due to our water pressure tight KRASO 4 Seal! Secure due to break-resistant solid wall material!
+ The intelligent, all-purpose and flexible cable penetration system for complex new buildings:
public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector
+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas
+ The matching accessories for every purpose!
+ DafStB waterproof concrete guideline: stress class 1 + 2
Спецификации
| wall thickness in cm | 20, 30, 40, 50, 24, 25, 35, 36,5, 45 |
| Diameter KDS | KDS 150 |
