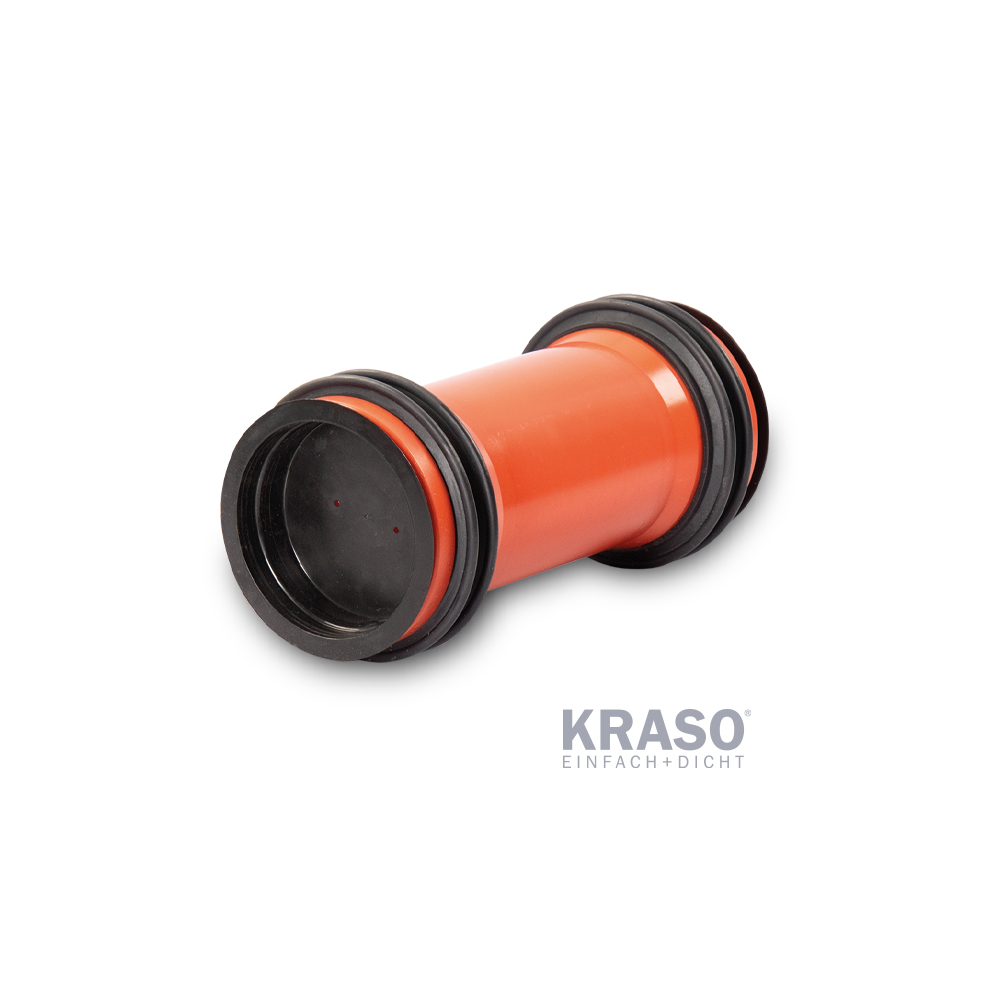

KRASO Wall Penetration Type DFW (piece)

KRASO Wall Penetration Type DFW (piece)

https://www.primostar.eu/web/image/product.template/6689/image_1920?unique=a9c2941


Triple wall - specially made for precast factories -

In accordance with DIN EN 1401, for the installation in triple walls, for connection to KG/HT pipes on both sides, with formed plug-in sleeve on both sides, 2 KRASO Covers as an installation aid | DafStB waterproof concrete guideline: stress class 1 + 2


Easy and secure sealing in precast walls


+ For the installation in triple wall elements: stop occurring water at the outer shell!

+ KRASO Type DFW 4:  KRASO 2 Seal on both sides - MPA-tested up to 3.5 bar!

+ KRASO Type DFW 6: KRASO 2 Seal on one side, central KRASO 4 Seal - MPA-tested up to 10 bar!

+ KRASO Type DFW 8: KRASO 2 Seal on both sides, central KRASO 4 Seal - MPA-tested up to 10 bar!

+ IAF-tested: radon-tight!

+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)

+ DafStB waterproof concrete guideline: stress class 1 + 2


85,55 € 85.55 EUR 85,55 € Ex moms

Ej tillgänglig för försäljning

(85,55 € / Enheter)
  • Design
  • Diameter DN
  • wall thickness in cm

Kombinationen existerar inte.

Kontakta oss

Specifikationer

Design DFW 4, DFW 6, DFW 8
Diameter DN 110, 125, 160, 200, 250, 315
wall thickness in cm 20, 30, 40, 50, 24, 25, 35, 36,5, 45
