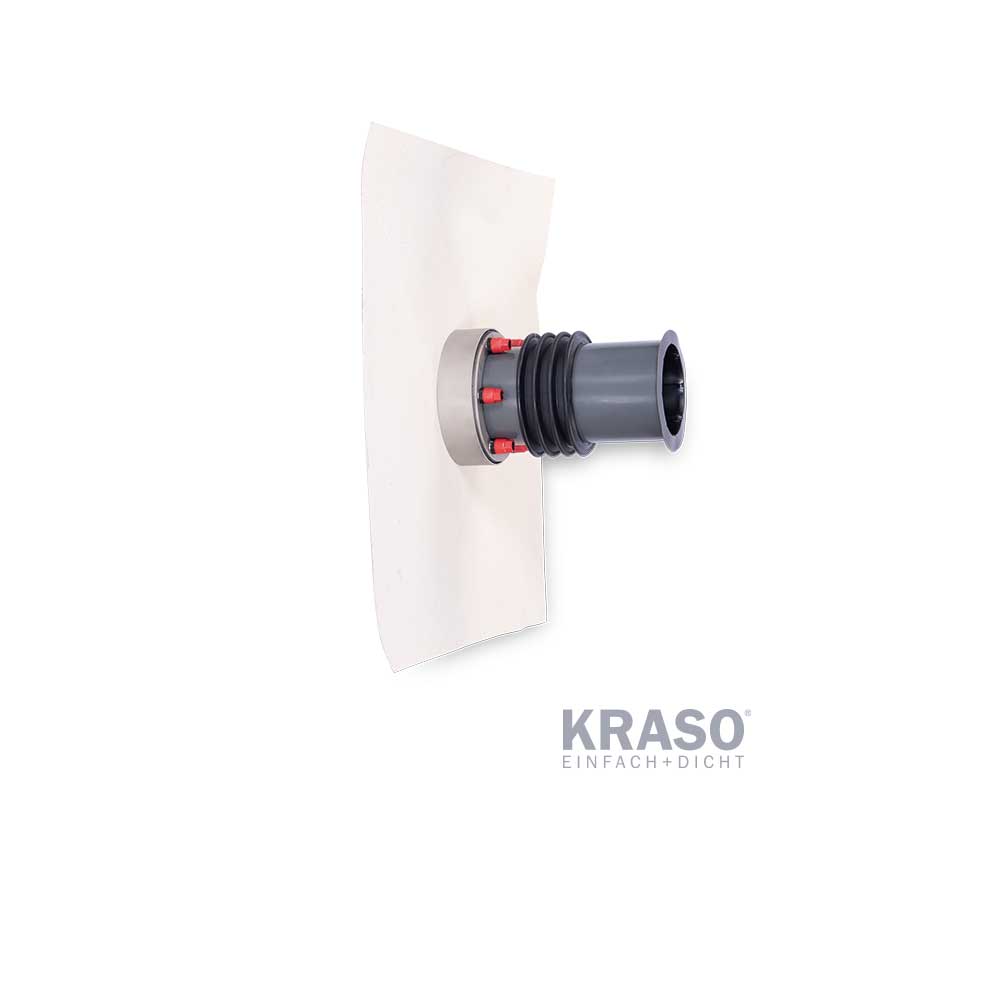

KRASO Casing Type FBV-FE - true diameter casing (piece)

https://www.primostar.eu/web/image/product.template/6694/image_1920?unique=a9c2941


Thick-walled plastic casing for a compliant integration of FBV films | DafStB waterproof concrete guideline: stress class 1 + 2


The casing for FBV integration


+ Casing for a compliant integration of fresh concrete composite films

+ Independent from the manufacturer: fresh concrete composite films (FBV) of all manufacturers can be integrated at the factory

+ KRASO FBV Sealing Flange made of non-corrosive stainless steel V2A with 20 cm surrounding, square fresh concrete composite film

+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!

+ The thick-walled true diameter plastic casing for concreting: as a recess for retrofit installation of cables or pipes using a sealing insert!

+ With water pressure tight surrounding KRASO 4 Seal - certified and approved: due to the special geometry, the 4 Seal produces a water pressure, gas- and odour-tight grip with the concrete

+ Materials and processing: KRASO Casings are made of weatherproof and impact resistant plastic. The surrounding KRASO 4 Seal is joined monolithically to the plastic pipe by vulcanization.

+ IAF tested: radon-tight!

+ Certified with the quality seal of the FHRK e. V.

+ DafStB waterproof concrete guideline: stress class 1 + 2


765,84 € 765.84 EUR 765,84 € Ex moms

Ej tillgänglig för försäljning

(0,00 € / Enheter)
  • Internal Diameter ID
  • wall thickness in cm

Kombinationen existerar inte.

Specifikationer

Internal Diameter ID 250, 100, 125, 150, 200, 300
wall thickness in cm 20, 30, 40, 50, 24, 25, 35, 36,5, 45
