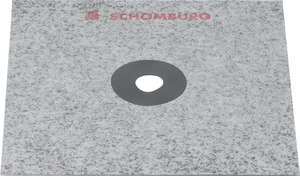

SCHOMBURG ASO-Dichtmanschette-W (1 pc)
Preformed waterproof sections for pipe penetrations in walls in combination with tiled finishes
Description
- Fleece-laminated wall collar with expansion zone
- For pipe diameters of 8 - 80 mm
- Marked for precise cutting to the required diameter
- Flexible
- Tensile
- Crack bridging
Areas of Application
- To integrate tap extensions and intersections into the bonded waterproofing system
- As a system component for bonded waterproofing for water impact class W0-I to W3-I in accordance with DIN 18534
Advantages
- Tested system product
- Available in various sizes
Consumption:
1 unit per pipe penetration
| Article-No. | Width | Length | Packaging size | Color | Unit/Pallet | Repackaging |
|---|---|---|---|---|---|---|
| 206131-001 | 12 cm | 12 cm | 8-20mm (tube diameter), piece | Grey | 4000 | 25 |
| 206131-002 | 15 cm | 15 cm | 15-40mm (tube diameter), piece | Grey | 5000 | 25 |
| 206131-003 | 20 cm | 20 cm | 35-80mm (tube diameter), piece | Grey | 7000 | 25 |
Specifikacijos
| Specifikacija | Vamzdžio d: nuo 15 mm iki 40 mm, Vamzdžio d: nuo 35 mm iki 80 mm, Vamzdžio d: nuo 8 mm iki 20 mm |
| Pardavimo pakuotė | 1 pc |
| Spalva | pilka |
