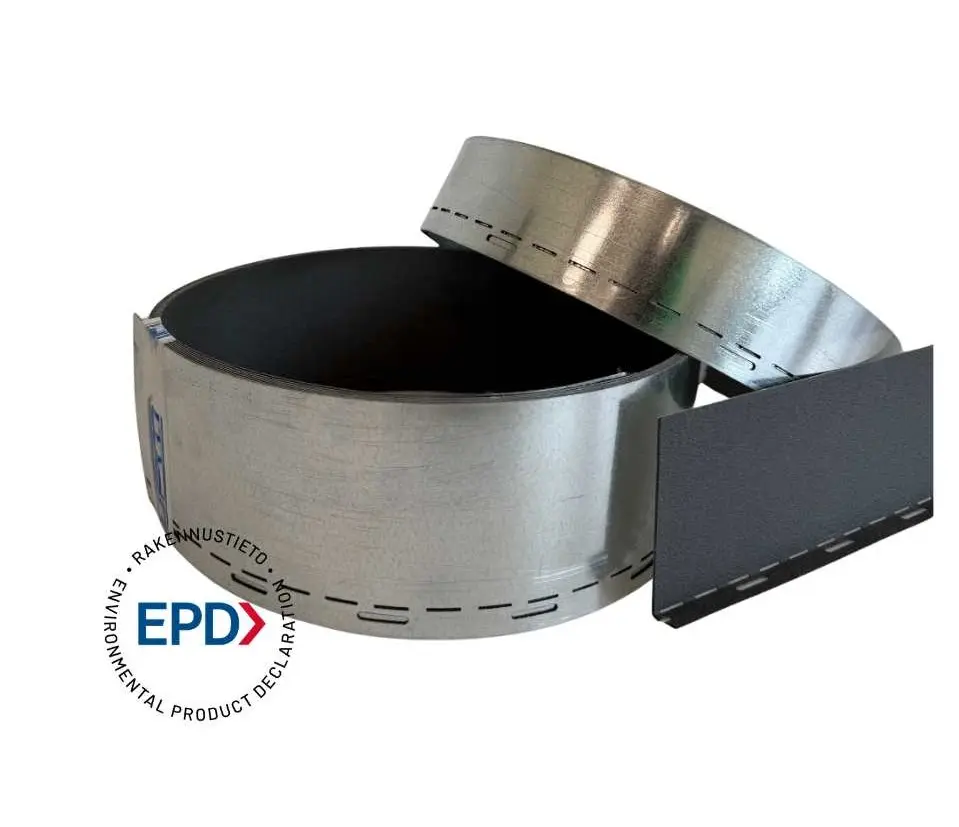

WPM® METAL SHEET WATERSTOP UNIVERSAL R/L
Universal construction joint sheet with polymer coating
APPLICATIONS:
WPM® Metal Sheet Waterstop (construction joint profile) R-L is used for waterproofing construction joints against pressurized water in various underground reinforced concrete structures. Typical applications include wall-to-floor, wall-to-wall, slab-to-slab, and wall-to-ceiling construction joints. Common areas of use are underground parking garages, tanks, and similar structures.
PROPERTIES:
- Special polymer coating – elastic and non-reactive with water
- Polymer coating forms a homogeneous bond with concrete upon curing
- Installable directly into fresh Concrete
- Universal – suitable for both straight (R) and L-profiles
- Can be combined with expansion joint tapes
- Watertight up to 24 m (2.4 bar), officially tested by TalTech University – Test No. 372-A/19
- Tested for watertightness up to 15 bar – Test Report No. 1/2024
- Manufactured in Estonia
SPECIFICATIONS:
- Steel sheet: galvanized steel
- Sheet width: as selected
- 20 mm bent edge on one side
- Sheet thickness: approx. 0.5 mm
- Coating: as selected
- Temperature resistance: -35°C to +75°C
- Installation temperature: no limitations
PACKAGE:
All coatings
Steel strips in rolls: 3 x 7.5 m elements, connection clips, and glues included
Start with the customer – find out what they want and give it to them.
Ehitusvuukidesõlmed
Here, you can find all construction nodes that we watertight with our materials, such as floor-wall, wall-ceiling, crack inducing waterstop and etc...
Paigaldusvideo
Vaata, kui lihtne on paigaldada vuugiplekki põranda-seina konstruktsiooni töövuuki.
| Упаковки |
|
| Упаковки |
|
Määrittelyt
| width | 155+20, 125+20, 65+20 |
| coating | polymer coating, polymer coating + protective film, bitumen + bitumen coating, bitumen coating, Suitable for drinking water, polymer + polymer coating |
| Salespackaging | Box (3x7,5m), Box (4x7,5m) |
