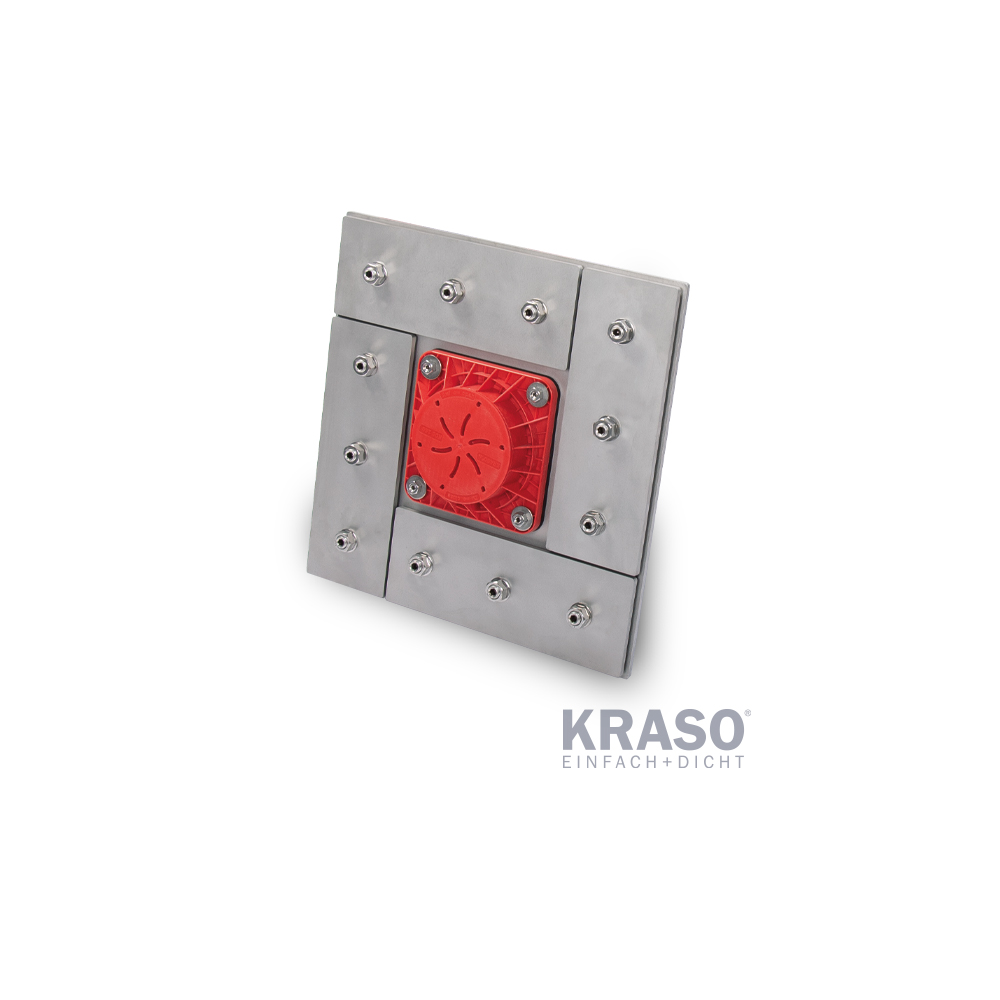

KRASO Cable Penetration KDS 150 FL/ZE as double wall penetration (piece)
Cable penetration KDS 150 FL/ZE as double wall penetration, with fixed-loose flange and exterior protrusion flange FDS 150 for concreting, for installation of media pipes using KRASO System Sealing Insert KDS 150 (not included in the scope of supply) or for connection of KRASO KDS 150 Accessories (e.g. system cover) with bayonet fitting, made of non-corrosive stainless steel V2A, with water pressure tight surrounding KRASO 2 Seal, for buildings with exterior sealing (“black tank“) against pressing water / non-pressing water according DIN 18533. Available in non-corrosive stainless steel V2A or with special coating | DIN 18533 W2.1 -E, W2.2 -E
Compatible, tight, secure - the double wall penetration system
+ Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure due to break-resistant solid wall material!
+ The intelligent, all-purpose and flexible cable penetration system for complex new buildings:
public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector
+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas
+ The matching accessories for every purpose!
+ DafStB waterproof concrete guideline: stress class 1 + 2
Specifications
| Dizains | spiežot ūdeni, nespiedošs ūdens |
| Īpašs pārklājums | bez īpaša pārklājuma, ar īpašu pārklājumu |
| sienas biezums cm | 20, 30, 40, 50, 24, 25, 35, 36,5, 45, 15, 17,5 |
| Diametrs KDS | KDS 150 |
