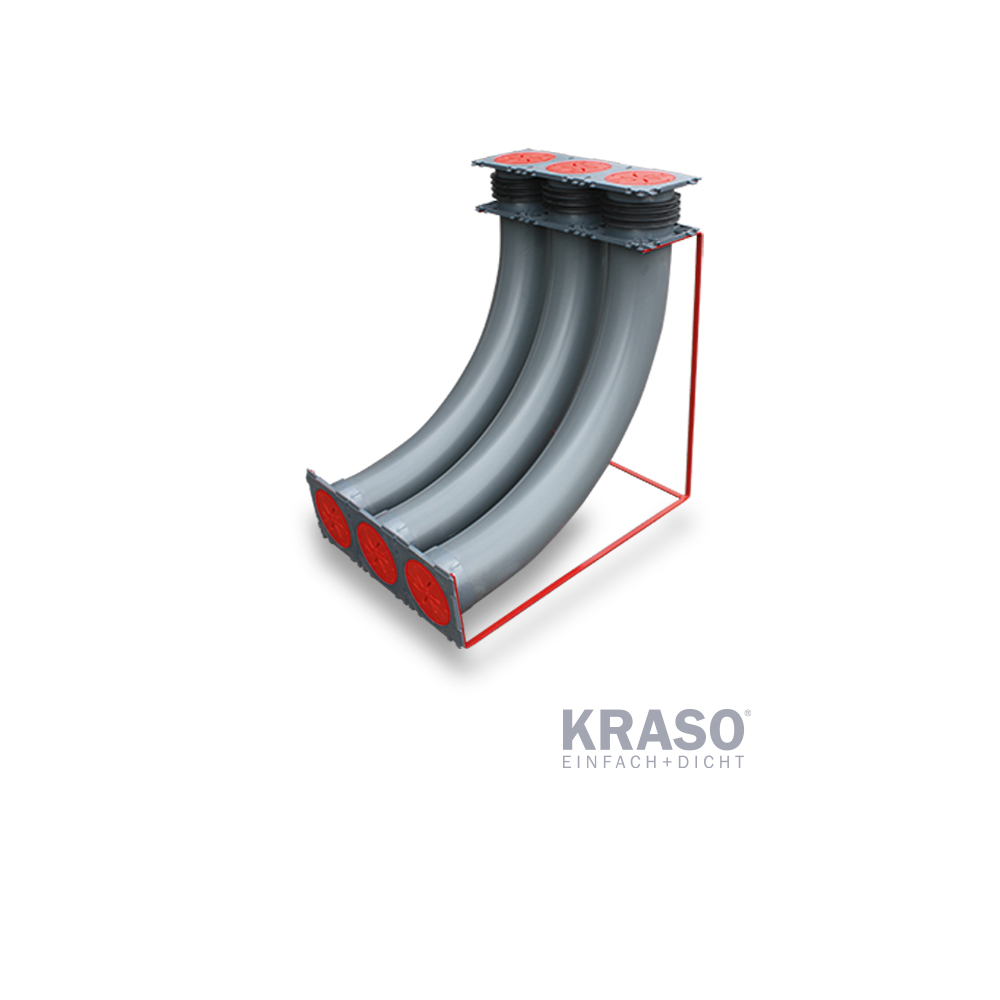

KRASO Cable Inlet Box System KDS 150 (piece)

KRASO Cable Inlet Box System KDS 150 (piece)

https://www.primostar.eu/web/image/product.template/6627/image_1920?unique=1d16c97


For the installation of cables and utility lines such as e.g. water - electricity - telecommunication etc. in buildings without basement. Attention: do not use a KRASO System Sealing Insert KDS 150 for the sealing of media lines, but use KRASO Sealing Inserts instead! | DafStB waterproof concrete guideline: stress class 1 + 2, with optional trowel flange DIN 18533 W1 -E

The flexible system for industry and commercial buildings


+ The secure and reliable way for the installation of cables and pipes right into buildings: with a radius of 650 mm or 1000 mm, main pipes and cable protective hoses can be connected at a 90-degree angle to buildings without basement

+ KRASO Cable Penetration System KDS 150: flexible and combinable in various ways

+ The KRASO Cable Inlet Box System KDS 150 can be expanded to any number of rows thanks to the plug-in system - depending on your requirements!

+ For the installation of cables and pipes such as water, electricity, telecommunication etc. into buildings without a basement: the perfect solution for industrial and commercial buildings!

+ Sealing of the base plate by water pressure tight surrounding KRASO 4 Seal

+ With stable installation device for correct positioning before concreting

+ Flexible plug-in possibilities on the outer side using KRASO Cable Penetration System KDS 150

+ Additional media pipe sealing from the inside using KRASO Sealing Inserts

+ Included in the scope of supply: KRASO KDS 150 Empty Pipe Insert with bayonet fitting for a floor construction with floor heating, insulation and screed

+ DafStB waterproof concrete guideline: stress class 1 + 2, with optional trowel flange DIN 18533 W1 -E


1 121,62 € 1121.62 EUR 1 121,62 € Bez PVN

Available to order, ask for price and delivery time

(0,00 € / gab.)
  • Sistēma
  • Liekšanas rādiuss mm

Šāda kombinācija nepastāv.

Kontakti

KRASO Cable Inlet Box System KDS 150

for the installation of cables and lines as for example water – electricity - telecommunication etc. into buildings without basement (non-licensed for gas lines according DVGW)

The flexible system for industry and commercial buildings

+ KRASO Cable Inlet Box System KDS 150 offers you a secure and simple possibility to install cables and pipes right into buildings. Together with the KRASO Cable Penetration System KDS 150 this flexible system offers plenty of combinations. With a radius of 650 mm you are able to connect pipes and cable protective hoses at a 90-degree angle to buildings without basements.

+ Due to the variable plug-in system the KRASO Cable Inlet Box System KDS 150 can be combined to many different sizes - according your requirements. + For the installation of cables and lines as for example electricity, telecommunication etc. into buildings without basements (non-licensed for gas lines according DVGW): the ideal solution for industrial and commercial buildings. + Sealing of the base plate by water pressure tight surrounding KRASO 4 Seal.

 + With stable installation device for correct positioning before concreting.

+ Flexible plug-in possibilities from the outside due to KRASO Cable Penetration System KDS 150.

+ Additional media line sealing from the inside using KRASO Sealing Inserts.

+ Including: KRASO KDS 150 Empty Pipe Insert with bayonet fitting for a floor construction with floor heating, insulation and screed. The flexible system for industry and commercial buildings

+ KRASO Cable Inlet Box System KDS 150 offers you a secure and simple possibility to install cables and pipes right into buildings. Together with the KRASO Cable Penetration System KDS 150 this flexible system offers plenty of combinations. With a radius of 650 mm you are able to connect pipes and cable protective hoses at a 90-degree angle to buildings without basements.

+ Due to the variable plug-in system the KRASO Cable Inlet Box System KDS 150 can be combined to many different sizes - according your requirements.

+ For the installation of cables and lines as for example electricity, telecommunication etc. into buildings without basements (non-licensed for gas lines according DVGW): the ideal solution for industrial and commercial buildings.

+ Sealing of the base plate by water pressure tight surrounding KRASO 4 Seal.

+ With stable installation device for correct positioning before concreting. + Flexible plug-in possibilities from the outside due to KRASO Cable Penetration System KDS 150.

+ Additional media line sealing from the inside using KRASO Sealing Inserts.

+ Including: KRASO KDS 150 Empty Pipe Insert with bayonet fitting for a floor construction with floor heating, insulation and screed.

+ A lot of accessories make the KRASO Cable Penetration System a complete and all-purpose package!




Specifications

Sistēma 4 reizes, 3 reizes, 2 reizes, 1 reizes
Liekšanas rādiuss mm 650 mm, 1000 mm
